Dental Implants

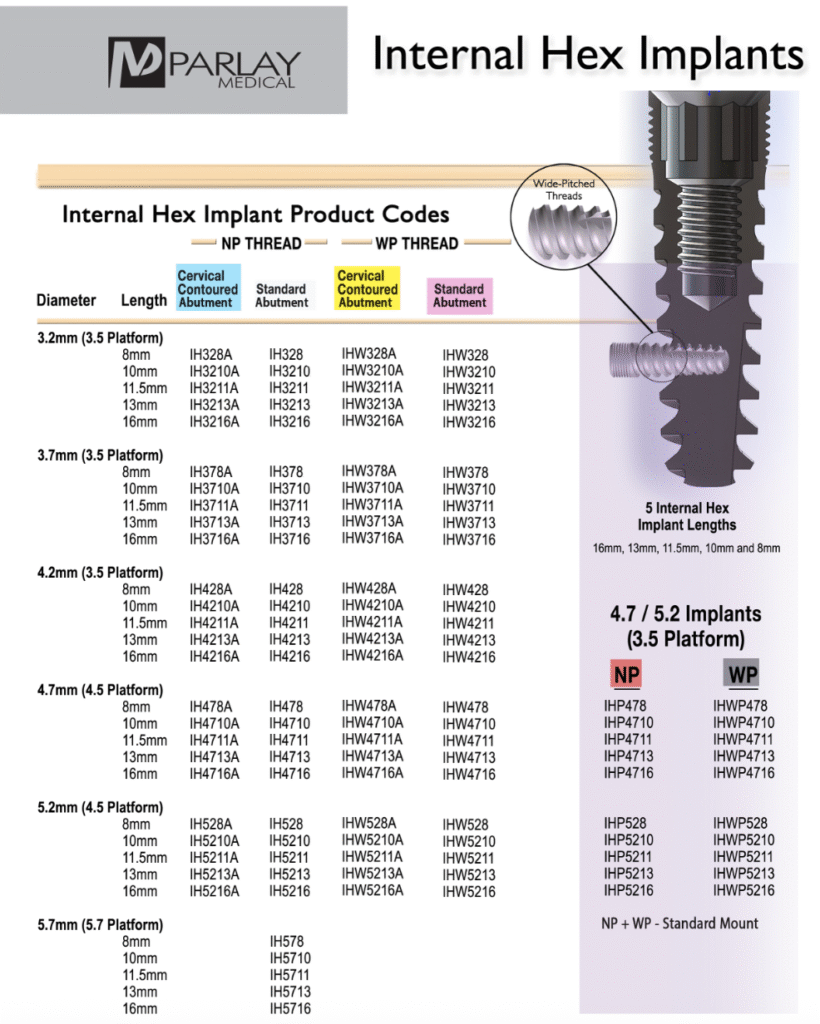

Parlay Implants come in 30 sizes in combinations of the following:
- Diameters: (3.2, 3.7, 4.2, 4.7, 5.2, 5.7mm)
- Lengths: (8, 10, 11.5, 13, 16mm)
- Platforms: 3.5mm for implants of diameters of (3.2, 3.7, 4.2mm) and Switched platform for implants of diameters (4.7 and 5.2mm). And 4.5mm for implants with diameters of (4.7, 5.2 and 5.7mm).
There are six different implant models under three categories:
Normal Pitch Thread (NP Thread):

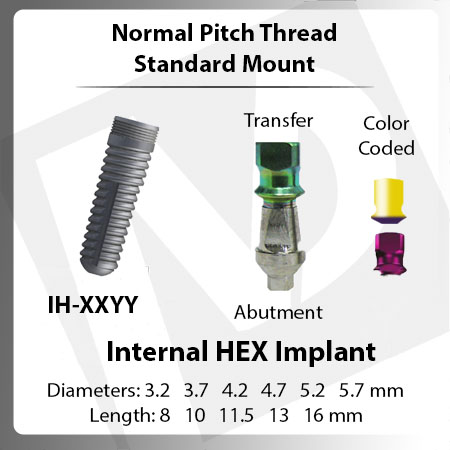

- Normal Pitch, Standard Mount Abutment – 5.7mm diameter only available in this model WHITE label

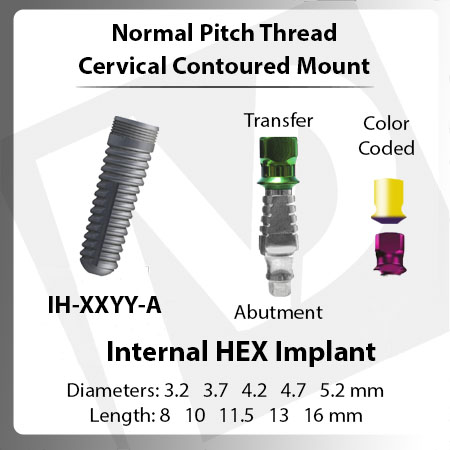

- Normal Pitch, Cervical Contoured Mount Abutment BLUE label
Wide Pitch Thread (WP Thread):

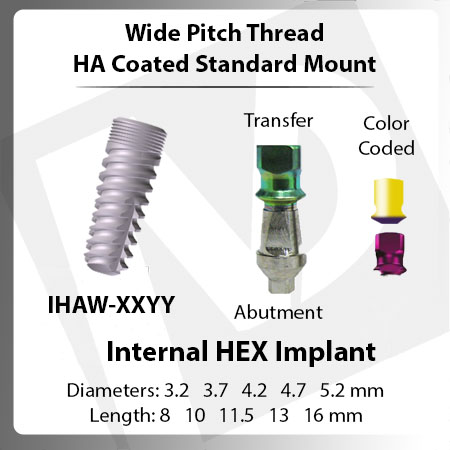

- Wide Pitch, Standard Mount Abutment Pink label
- Wide Pitch, Cervical Contoured Mount Abutment YELLOW label

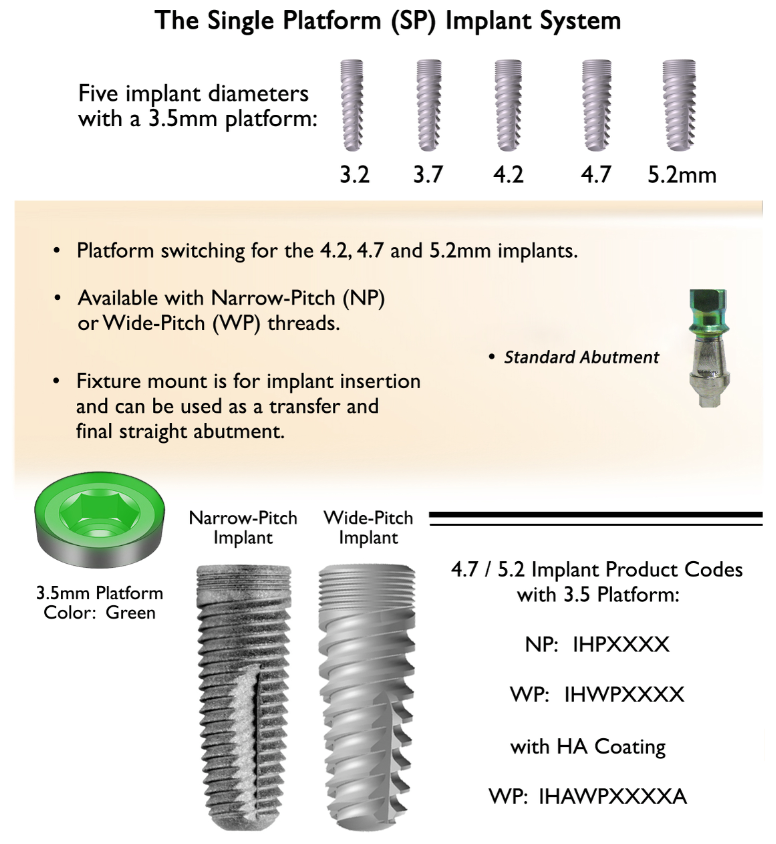

Switched Platform (4.7 & 5.2 Diameter implants with 3.5 mm platform):
- Normal Pitch, Standard Mount Abutment SALMON label
- Wide Pitch, Standard Mount Abutment GRAY label
